M73, M90, and M97 configurations

The M-73 is a high-voltage, heavy wattage, continuous duty capacitor. In the M-73, the relationship between rotation and capacitance is almost perfectly linear. M-73's have performed well in several challenging applications, including short wave radio, controlled-plasma manufacturing, and magnetic resonance imagery.

Showing all 10 results

73-1-32-65N
$213.00 1pc: $213 2-4pcs $178 5pcs+ $155
Min Capacitance pF: 22pF Max Capacitance pF: 1017pF Max Voltage, Vrms: 1100 V Max Current, Arms: 2 Arms
73-1-32-99N
$281.00 1pc: $281 2-4pcs $234 5pcs+ $205
Min Capacitance pF: 31pF Max Capacitance pF: 1558pF Max Voltage, Vrms: 1100 Vrms Max Current, Arms: 2 Arms
73-1-45-45TC
$484.00 1pc: $484 2-4pcs $354 5pcs+ $276
Min Capacitance pF: 20pF Max Capacitance pF: 495pF Max Voltage, Vrms: 1550 Vrms Max Current, Arms: 20 Arms
73-1-75-37N
$123.00 1pc: $123 2-4pcs $103 5pcs+ $90
Min Capacitance pF: 19pF Max Capacitance pF: 253pF Max Voltage, Vrms: 2500 Vrms Max Current, Arms: 2 Arms
73-1-75-75N
$162.00 1pc: $162 2-4pcs $134 5pcs+ $119
Min Capacitance pF: 33pF Max Capacitance pF: 517pF Max Voltage, Vrms: 2500 Vrms Max Current, Arms: 2 Arms
73-1-12-37N
$114.00 1pc: $114 2-4pcs $96 5pcs+ $84
Min Capacitance pF: 22pF Max Capacitance pF: 171pF Max Voltage, Vrms: 1100 Vrms Max Current, Arms: 2 Arms
73-1-12-53W
$128.00 1pc: $128 2-4pcs $105 5pcs+ $94
Min Capacitance pF: 30pF Max Capacitance pF: 245pF Max Voltage, Vrms: 3500 V Max Current, Arms: 5 Arms
73-1-14-25H
$158.00 1pc: $158 2-4pcs $133 5pcs+ $115
Min Capacitance pF: 17pF Max Capacitance pF: 102pF Max Voltage, Vrms: 3700 V Max Current, Arms: 10 Arms

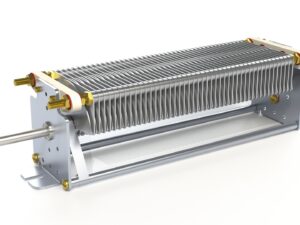

73-1-45-91N
$218.00 1pc: $218 2-4pcs $182 5pcs+ $170
Min Capacitance pF: 34pF Max Capacitance pF: 1017pF Max Voltage, Vrms: 1550 V Max Current, Arms: 2 Arms
Custom RFQ
Made to Order Capacitors http://www.orenelliottproducts.com/custom-capacitor-quotation/
