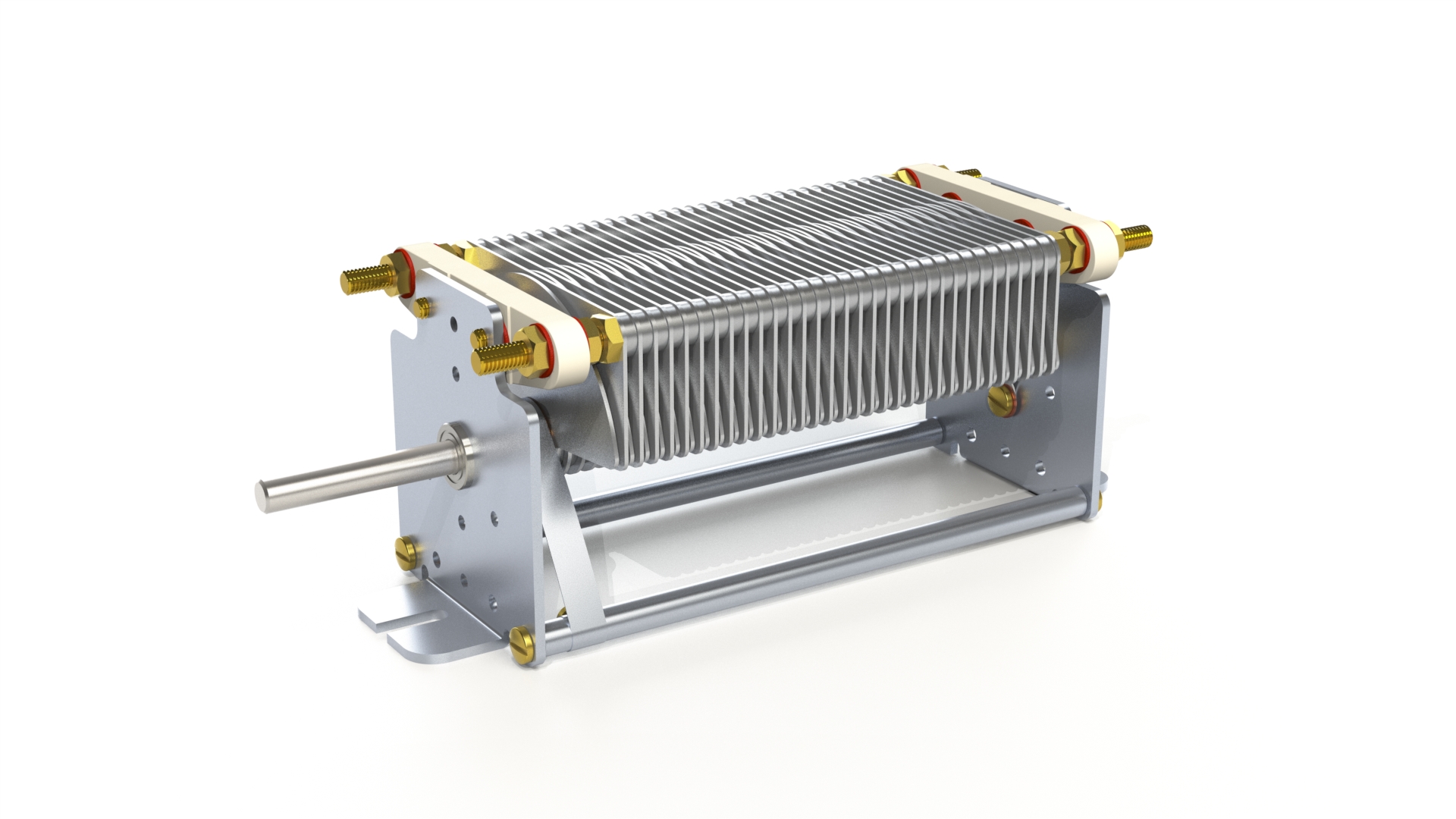

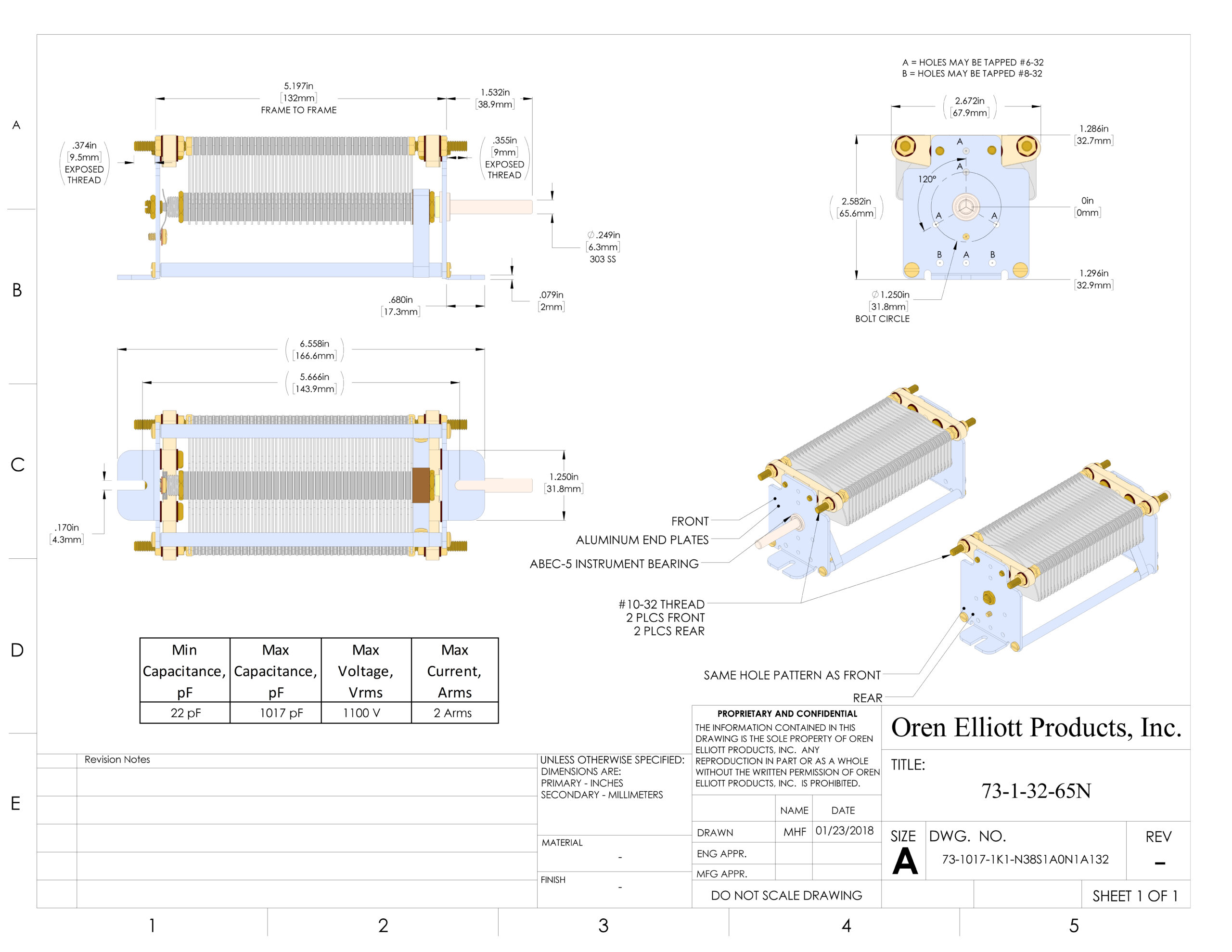

73-1-32-65N
$213.00
Click Image to Enlarge.
1pc: $213
2-4pcs $178
5pcs+ $155
Min Capacitance pF: 22pF
Max Capacitance pF: 1017pF
Max Voltage, Vrms: 1100 V
Max Current, Arms: 2 Arms
Air Variable Capacitors
-
32APL208DE
$76.00 1pc: $76 2-4pcs $49 5pcs+ $33
Single hole mount Delrin shaft Air Gap: 0.032 inches Min Cap: 15.9pF Max Cap: 208pF Max Voltage: 1070 Vrms -
N50-19PTX-KIT
$99.00 1pc: $99 2-4pcs $69 5pcs+ $50
Air Gap: 0.036" Min Cap: 5.4pF Max Cap: 19.1pF Max Voltage: 1200Vrms 8:1 Reduction Drive (8 Turns of Shaft = 1 Blade Rotation) (Drop-in replacement for the 26-152 & 26-152P capacitors and the reduction drive unit, that goes into the Heathkit HW-8 transceiver.) The original 26-152 is now an obsolete configuration (our old NS-51 series), but we've replaced it with our still-current N50 series. Because the N50 is longer than the NS-51, this kit includes a new bracket, and replaces the original stand-alone reduction drive unit with the integral (built-in) reduction drive unit within the capacitor itself. We also provide a bushing to mount the original dial (but not the dial itself). This replacement kit will have the same curve (relationship between capacitance and rotor angle) as the original cap, and will have one significant advantage: With the original planetary drive unit, output torque was very high, and users would frequently damage the capacitor by inadvertently trying to tune past the capacitor's hard stops at min and max capacitance. This new unit is designed to slip at these stops, without damaging the capacitor. -
16APL153
$63.00 1pc: $63 2-4pcs $40 5pcs+ $25
Single hole mount Delrin shaft Air Gap: 0.016 inches Min Cap: 6.4pF Max Cap: 153pF Max Voltage: 640Vrms -
N50-384
$68.00 1pc: $68 2-4pcs $44 5pcs+ $28
Air Gap: 0.010 inches Min Cap: 14.9pF Max Cap: 384.2pF Max Voltage: 350 Vrms
